CA-209(VA-125/VA-150)

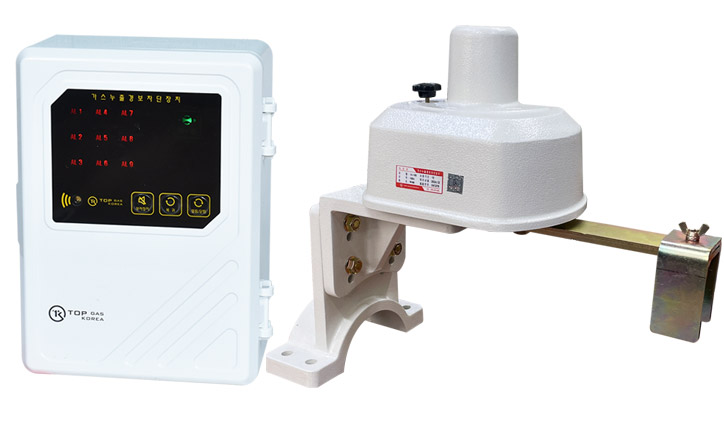

| This product consists of a detection unit (gas leak detector) that detects gas leaks, a control unit that receives the gas leak signal and controls the gas valve, and a shutoff unit that controls the gas valve. It automatically shuts off the gas supply in case of a gas leak at locations with gas facilities, preventing accidents such as gas explosions, fires, and poisoning. |
첨부파일
본문
| C | A | - | 2 | 0 | 3 | C |
|---|---|---|---|---|---|---|
| Control Unit | Design Type | - | 1 : 15A~25A 2 : 32A~150A |
0 : Wall Mounted 1 : Panel Mounted |
1 : 1 Circuit 2 : 2 Circuits 3 : 3 Circuits 9 : 9 Circuits |
NIL : Basic Specifications C : Wired Communication |
| Model | CA-209 |
|---|---|
| · Power Supply | 100~240Vac |
| · Operating Temperature and Humidity | -20℃~50℃, ≤95% RHd |
| · Power Consumption | 8W |
| · Switching Method | Remote and Manual Opening |
| · Alarm Display | Red LED, Buzzer Alert |
| · Input Circuit | 9 Circuits |
| · External Output(Option) | Contact, RS-485 |
| · External Dimensions(mm) | 155W×75D×200H |
| · Weight(g) | 800 |
| Model | VA-125 | VA-150 |
|---|---|---|
| · Shutoff Method | Handle Operated | |
| · Power Supply | 24Vdc | |
| · Operating Temperature and Humidity | -20℃~50℃, ≤95% RH | |
| · TORQUE (N⦁m) | ≥343.2 | |
| · Shutoff Speed | <30 Seconds | |
| · Operation Control Method | Limit Switch | |
| · Applicable Pipe Diameter | 125A | 150A |
| · External Dimensions(mm) | 550W×250D×420H | 570W×305D×505H |
| · Weight(Kg) | 16 | 17 |
