CA-109(VA-020/VA-025)

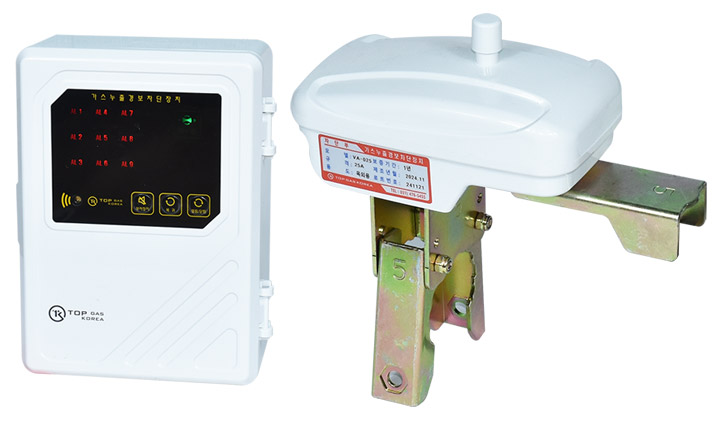

| This product consists of a detection unit (gas leak detector) that detects gas leaks, a control unit that receives the gas leak signal and controls the gas valve, and a shutoff unit that controls the gas valve. It automatically shuts off the gas supply in case of a gas leak at locations with gas facilities, preventing accidents such as gas explosions, fires, and poisoning. |
첨부파일
본문
| C | A | - | 1 | 0 | 9 | C |
|---|---|---|---|---|---|---|
| Control Unit | Design Type | - | 1 : 15A~25A 2 : 32A~150 |
0 : Wall Mounted 1 : Panel Mounted |
1 : 1 Circuit 2 : 2 Circuits 3 : 3 Circuits 9 : 9 Circuits |
NIL : Basic Specifications C : RS-485 Communication |
| Model | CA-109 |
|---|---|
| · Place of Use | Indoor |
| · Power Supply | 100~240Vac |
| · Operating Temperature and Humidity | -20℃~50℃, ≤95% RH |
| · Power Consumption | 11W |
| · Alarm Input | 9 Circuits |
| · Switching Method | Remote and Manual Opening |
| · Alarm Display | Red LED, Buzzer Alert |
| · Shutoff Unit Usage Specifications | 15A, 20A, 25A |
| · External Dimensions(mm) | 155W×75D×200H |
| · Weight(g) | 600 |
| Model | VA-015 | VA-020 | VA-025 | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| · Applicable Pipe Diameter | 15A | 20A | 25A | |||||||||||||||||||||||||||||||||||
| · Operating Pressure | For Low Pressure (<0.1Kg/㎠) | |||||||||||||||||||||||||||||||||||||
| · Place of Use | For Outdoor | |||||||||||||||||||||||||||||||||||||
| · Shutoff Method | Handle Operated | |||||||||||||||||||||||||||||||||||||
| · Power Supply | DC 12V | |||||||||||||||||||||||||||||||||||||
| · Operating Temperature and Humidity | -20℃~50℃, ≤95% RH | |||||||||||||||||||||||||||||||||||||
| · TORQUE | ≥60 Kg/㎠ | |||||||||||||||||||||||||||||||||||||
| · Shutoff Speed | <10 Seconds | |||||||||||||||||||||||||||||||||||||
| · Operation Control Method | Limit Switch | |||||||||||||||||||||||||||||||||||||
| · External Dimensions(mm) | 70W×140D×150H | 70W×150D×160H | ||||||||||||||||||||||||||||||||||||
| · Weight(g) | 400 | 400 | 410 | |||||||||||||||||||||||||||||||||||
